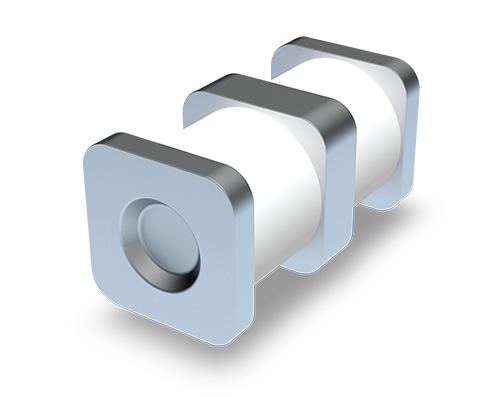

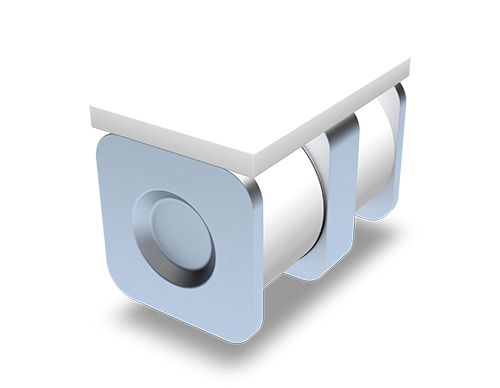

首页>>GDT | 陶瓷气体放电管>>贴片三极系列贴片三极系列
| Part Number | DC Spark-over Voltage 100V/s(V) | Impulse Voltage1000V/us(V) | Impulse Current 8/20μs(KA) | Capacitance 0.5V 1MHZ(pF) | Size L*W*H(mm) | 搜索 | |
| B3D090L-C | 90V | ≤700V | 5KA | ≤1.5pF | 7.8*5.0*6.0 | ||
| B3D090M-C | 90V | ≤600V | 10KA | ≤1.5pF | 7.8*5.0*6.0 | ||
| B3D230L-C | 230V | ≤800V | 5KA | ≤1.5pF | 7.8*5.0*6.0 | ||
| B3D420L-C | 420V | ≤950V | 5KA | ≤1.5pF | 7.8*5.0*6.0 | ||
| B3D075M | 75V | ≤575V | 10KA/20KA | ≤1.5pF | 7.6*5.0*5.0 | ||
| B3D470M | 470V | ≤950V | 10KA | ≤1.5pF | 7.8*5.0*5.0 | ||
| B3Q090 | 90V | ≤600V | 6KA | ≤1.5pF | 6.8*3.5*3.5 |
